Crane Rotator HRF60X 6 Ton Grab Rotator Flange Mount | Replacement for FINN Rotor CRF600X, Baltrotors GR603-2 | Forestry Crane Rotator & Material Handling Solutions
This grab crane rotator is a hot sale, high-quality flange-mounted model designed for demanding and continuous rotation applications. Manufactured by the original factory and equipped with dual hose guards for added hydraulic protection, it ensures smooth, safe, and reliable operation across forestry, agriculture, construction, and material handling industries. With a rated lifting capacity of 60KN and 360¡ã continuous hydraulic rotation, this flange rotator is widely recognized for efficiency, durability, and seamless integration into multiple machines. It is fully interchangeable with international models, making it a direct replacement without modification for leading brands such as FINN Rotor CRF600X and Baltrotors GR603-2. If you are looking for a forestry crane rotator or a hydraulic rotator for material handling, the HRF60X is your ideal choice.
Key Features
6 ton lifting capacity for heavy-duty applications
Flange connection for stable and secure installation
Double hose guards for maximum hydraulic hose protection
360¡ã continuous rotation for optimal flexibility
Factory direct supply for competitive pricing and consistent quality
Proven reliability in forestry, agriculture, construction, and logistics sectors

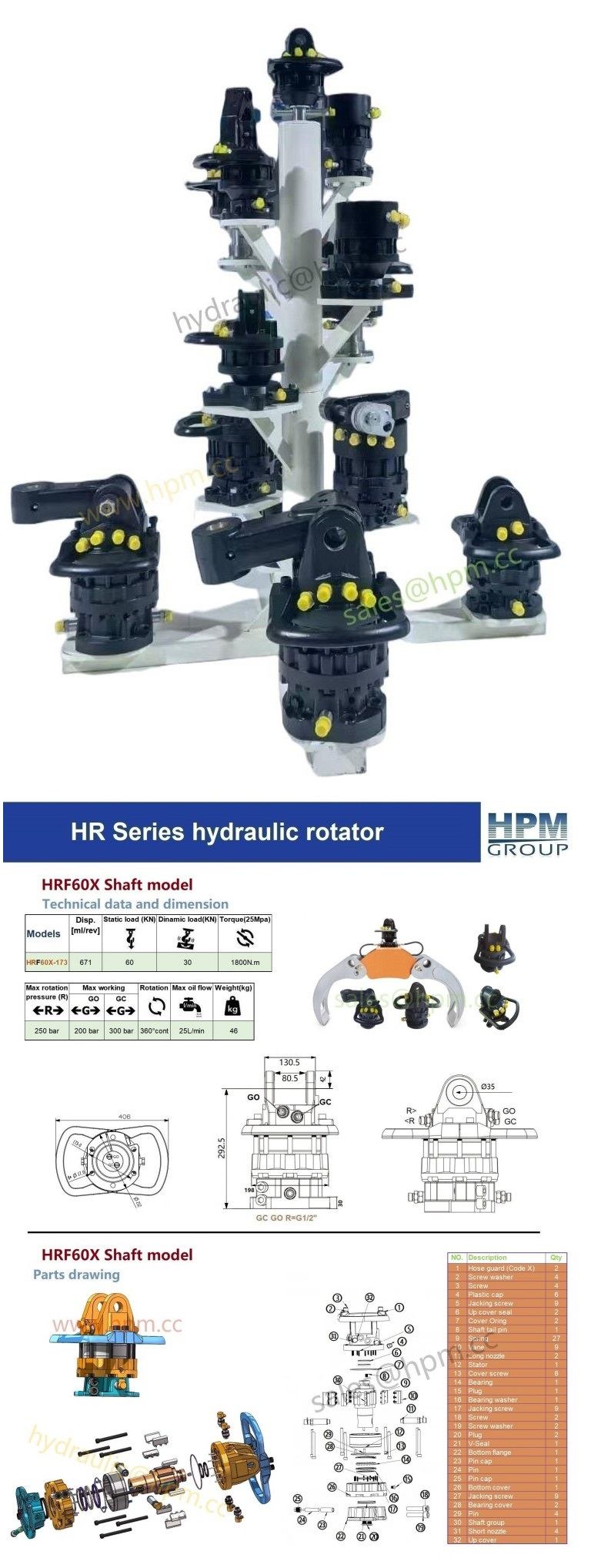

Technical Specifications
Displacement: 671 ml/rev
Static Load: +60 -50 kN
Dynamic Load: +30 -25 kN
Torque (at 25 MPa): 1800 N¡¤m
Max Rotation Pressure (R): 250 bar
Max Working Pressure (GO): 200 bar
Max Working Pressure (GC): 300 bar
Rotation: 360¡ã continuous
Max Oil Flow: 25 L/min
Weight: 47 kg
Compatibility
The crane rotator HRF60X is fully interchangeable with:
FINN Rotor CRF600X (Part Number 70600S-333 CR 600S-X35F173-333)
Baltrotors GR603-2
Applications
Forestry & Logging Cranes: Timber loading, sorting, and stacking with smooth handling.
Agricultural Loaders & Mini Tractors: Efficient attachment for field and farm operations.
Road & Construction Machinery: Excavators and cranes for building, roadwork, and infrastructure projects.
Material & Cargo Handling: Hydraulic rotator for material handling in industrial sites, ports, and logistics hubs.
Urban & Off-Road Machinery: Reliable performance in diverse environments and heavy outdoor use.
Why Choose HRF60X
Direct replacement for FINN Rotor CRF600X and Baltrotors GR603-2 without modifications
Reinforced seals and durable build for extended service life
Factory direct pricing reduces operating costs compared to imports
Designed to withstand tough outdoor and off-road environments
A trusted forestry crane rotator and hydraulic rotator for material handling solution
FAQ
1. Is HRF60X easy to install?
Yes. The flange-mounted interface matches standard patterns, enabling quick installation on excavators, forestry cranes, and loaders without modifications.
2. What lifting capacity does it support?
The HRF60X is rated at 6 tons (about 60kN), making it suitable for timber handling, cargo, and construction site work.
3. Does it provide continuous 360¡ã rotation?
Yes. Its hydraulic system allows unlimited 360¡ã continuous rotation for smooth and precise operation.
4. Which models is it interchangeable with?
It is fully compatible with FINN Rotor CRF600X and Baltrotors GR603-2, ensuring direct replacement without adapters.
5. What¡¯s the benefit of dual hose guards?
The double hose guards protect hydraulic hoses from wear, damage, and debris, reducing leaks and extending lifespan in harsh environments.
6. Can HRF60X be used as a forestry crane rotator?
Absolutely. It is widely used in logging and timber cranes for lifting, sorting, and stacking logs efficiently and safely.
7. Is it suitable as a hydraulic rotator for material handling?
Yes. The HRF60X is an excellent fit for cranes handling pallets, scrap, and bulk materials in logistics and industrial yards.
8. What routine maintenance is recommended?
Check hose guards and fittings regularly, inspect for leaks, and lubricate according to equipment schedules (typically every 500 hours).
9. How does HRF60X compare with imported alternatives?
It matches leading brands in performance and compatibility while offering cost savings and consistent quality through factory direct supply.
10. If I replace a Baltrotors GR603-2, do I need adapters?
No. The HRF60X is designed as a direct replacement. Just check flange patterns and hydraulic connections, then install and purge air as per manual.
Hydraulic-rotator-application
CNC-machines-hydraulic-rotator
Testing-hydraulic-rotator
Measuring-hydraulic-rotator
Painting-packing-hydraulic-rotator
|
