Hydraulic Rotator 5 Ton Flange Type 每 HRF50W Replacement for FINN Rotor CRF500, Baltrotors GR465 / GR463 / GR55MF, Formiko FHR 45SF / FHR 45RF / FHR 5.5SF, Ferrari FR50F / FR55F
This hydraulic rotator is a 5-ton flange-mounted hydraulic rotator motor designed for forestry cranes, excavators, agricultural loaders, and construction machinery. It delivers 360∼ continuous hydraulic rotation, ensuring smooth grapple positioning, reliable load control, and long service life in demanding environments.
As a direct OEM replacement, the HRF50W is fully compatible with leading brands including FINN Rotor, Baltrotors, Formiko, and Ferrari. This makes it an ideal choice for operators seeking a cost-effective, heavy-duty rotator that reduces downtime while maintaining OEM-level performance and durability.
Key Features
5 ton (5000 kg) lifting capacity 每 suited for forestry, construction, and agriculture
Flange-type mounting 每 secure, stable, and easy to install
360∼ continuous hydraulic rotation 每 smooth and precise grapple positioning
OEM compatibility with FINN Rotor CRF500, Baltrotors GR465/GR463, Formiko FHR 45SF/5.5SF, Ferrari FR50F/FR55F
Heavy-duty construction 每 engineered for harsh forestry, off-road, and all-weather conditions
Factory-direct ㄕ#118alue 每 competitive pricing with professional-grade reliability

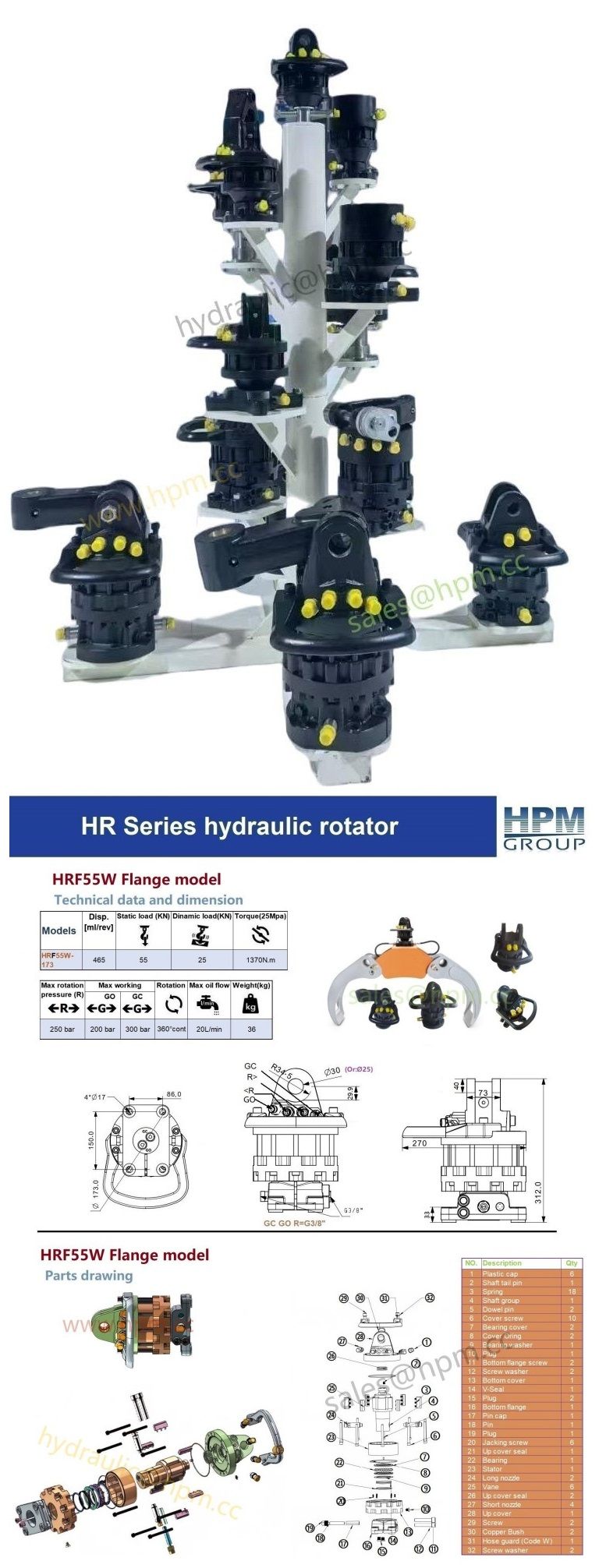

Technical Specifications
Displacement: 465 ml/rev
Static Load: 50 kN
Dynamic Load: 25 kN
Torque (at 25 MPa): 1370 N﹞m
Max Rotation Pressure (R): 250 bar
Max Working Pressure (GO): 200 bar
Max Working Pressure (GC): 300 bar
Rotation: 360∼ continuous
Max Oil Flow: 20 L/min
Weight: 36 kg
Compatibility 每 Interchangeable OEM Models
FINN Rotor CRF500 (codes: 70506-222, 70505-222, 70505-00S)
Baltrotors GR465, GR463, GR55MF
Formiko FHR 45SF, FHR 45RF, FHR 5.5SF
Ferrari FR50F, FR50F-30, FR55F, FR55F-30
Applications
Forestry & logging cranes 每 timber loading, rotation, and sorting
Excavator-mounted grapples 每 site clearing, demolition, utilities
Agricultural loaders & tractors 每 bale lifting, brush handling, bulk transport
Construction & road machinery 每 stone, pipe, and material placement
Material & cargo handling systems 每 versatile industrial lifting and movement
Municipal & off-road equipment 每 reliable operation in rugged outdoor conditions
FAQ 每 HRF50W Hydraulic Rotator
Q1: What is the lifting capacity of the HRF50W?
A1: It supports 5 tons (5000 kg), suitable for medium to heavy-duty forestry and construction use.
Q2: Is HRF50W a flange mount model?
A2: Yes, it uses a flange-type connection for secure installation.
Q3: Which OEM rotators can it replace?
A3: It is interchangeable with FINN Rotor CRF500, Baltrotors GR465/GR463/GR55MF, Formiko FHR 45SF/5.5SF, and Ferrari FR50F/FR55F series.
Q4: Can it be installed on excavators and skid steers?
A4: Yes, it works seamlessly with excavators, skid steers, forestry grapples, and agricultural loaders.
Q5: Does HRF50W support 360∼ continuous rotation?
A5: Absolutely, it offers smooth 360∼ hydraulic rotation for efficient grapple operation.
Q6: What industries commonly use HRF50W?
A6: It is widely used in forestry, agriculture, construction, recycling, municipal work, and cargo handling.
Q7: How does HRF50W compare to OEM brands like Baltrotors or Ferrari?
A7: It provides OEM-level strength and performance at a more competitive price point.
Q8: What kind of maintenance is required?
A8: Regular inspection of seals, hydraulic lines, and lubrication is recommended to maintain peak performance.
Q9: Is HRF50W designed for harsh outdoor conditions?
A9: Yes, it is built with reinforced materials and seals for mud, dust, wet, and off-road use.
Q10: Why choose HRF50W over an OEM version?
A10: It delivers the same compatibility and reliability as OEM models but with factory-direct pricing and lower total cost of ownership.
If you are looking for a reliable 5-ton hydraulic rotator with flange mount design, long-lasting durability, and full OEM compatibility, the HRF50W is your best solution.
