HRA30W 3 Ton Grapple Rotator | Hydraulic Shaft-Type Rotator Replacement for FINN CRA300, Baltrotors GR30, Formiko FHR3L
The HRA30W 3 Ton Grapple Rotator is a professional hydraulic shaft-type rotator designed for forestry cranes, agricultural loaders, and construction machinery. With a 3000kg lifting capacity and 360¡ã continuous hydraulic rotation, this grapple rotator offers durability, precision, and reliable performance. It is an ideal replacement for FINN CRA300, Baltrotors GR30, and Formiko FHR3L, making it a cost-effective solution for operators seeking a compatible and heavy-duty rotator.
Engineered for demanding applications, this hydraulic grapple rotator is optimized for forestry, agriculture, construction, and material handling. Its shaft-type mount ensures secure installation, while its rugged build guarantees long service life under extreme working conditions. Whether you are looking for a grapple rotator for forestry, a Baltrotors GR30 replacement, or a hydraulic rotator for excavators, the HRA30W is the right choice.
Key Features
-
3000kg (3 ton) lifting capacity
-
Shaft-type mount for stable installation
-
360¡ã continuous hydraulic rotation
-
Direct replacement for FINN CRA300, Baltrotors GR30, Formiko FHR3L
-
Heavy-duty design for forestry, agriculture, and construction
-
Durable structure for extreme outdoor conditions
-
Factory-direct supply with competitive pricing

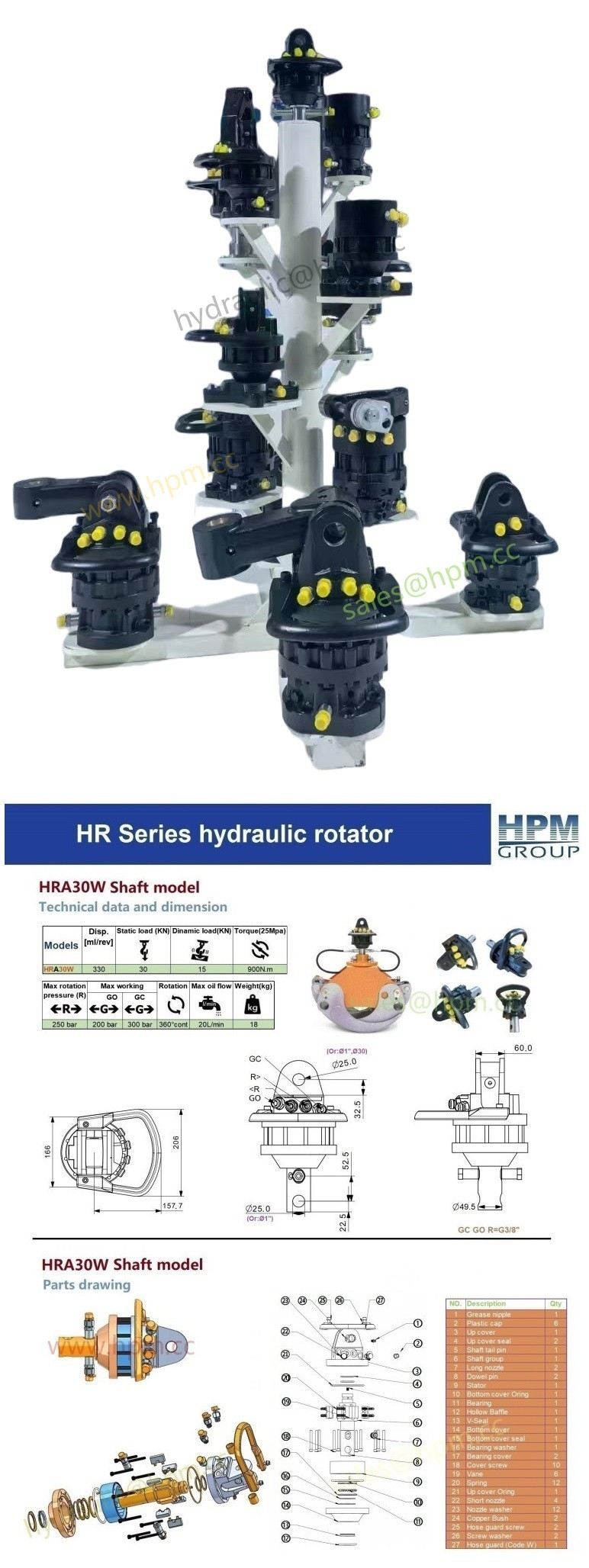

Technical Specifications
|
Model
|
HRA30W
|
|
Displacement
|
330 ml/rev
|
|
Static Load
|
30 KN
|
|
Dynamic Load
|
15 KN
|
|
Torque (25Mpa)
|
900 N¡¤m
|
|
Max Rotation Pressure (R)
|
250 bar
|
|
Max Working Pressure (GO)
|
200 bar
|
|
Max Working Pressure (GC)
|
300 bar
|
|
Rotation
|
360¡ã continuous
|
|
Max Oil Flow
|
20 L/min
|
|
Weight
|
18 kg
|
Applications
-
Forestry and logging cranes
-
Agricultural loaders and tractors
-
Construction and road machinery
-
Material and cargo handling
-
Excavators and off-road equipment
FAQ
Q1: What is the lifting capacity of the HRA30W Grapple Rotator?
A1: The HRA30W hydraulic grapple rotator supports up to 3000kg (3 tons), making it suitable for forestry, agriculture, and construction heavy-duty applications.
Q2: Is the HRA30W interchangeable with other brands?
A2: Yes, this shaft-type hydraulic rotator is fully compatible with FINN CRA300, Baltrotors GR30, and Formiko FHR3L, providing a reliable cross-brand replacement option.
Q3: What type of mounting does the HRA30W use?
A3: It features a shaft-type mount, ensuring secure and stable installation for excavator grapples and forestry loaders.
Q4: Can the HRA30W rotate continuously?
A4: Yes, this hydraulic rotator supports 360¡ã continuous hydraulic rotation, ensuring smooth and precise operation under demanding conditions.
Q5: What industries commonly use this grapple rotator?
A5: The HRA30W grapple rotator is widely applied in forestry, agriculture, construction, material handling, and off-road equipment.
Q6: What is the maximum oil flow supported?
A6: It supports a maximum oil flow of 20 L/min, making it compatible with a wide range of hydraulic systems and excavator attachments.
Q7: How much does the HRA30W weigh?
A7: Weighing only 18 kg, this compact hydraulic rotator delivers strong performance while minimizing additional load on the machine.
Q8: What is the maximum working pressure?
A8: The HRA30W hydraulic rotator handles 200 bar (GO) and 300 bar (GC), with a maximum rotation pressure of 250 bar, ensuring long-term durability.
Q9: Is this product suitable for extreme outdoor conditions?
A9: Yes, the rugged build of this forestry grapple rotator ensures reliable operation in logging, construction, and heavy-duty outdoor environments.
Q10: Why choose the HRA30W over competitors?
A10: The HRA30W offers cross-brand compatibility with FINN CRA300, Baltrotors GR30, and Formiko FHR3L, along with factory-direct pricing, durable construction, and dependable performance, making it one of the most efficient hydraulic grapple rotators available.
|
