HRA30W 3 Ton Hydraulic Grapple Rotator – Shaft Type Rotator

The HRA30W 3 Ton Hydraulic Grapple Rotator is a premium shaft-type hydraulic rotator with 3000kg lifting capacity and 360° continuous rotation. Fully interchangeable with FINN CRA300, Baltrotors GR30, and Formiko FHR3L, it is the ideal choice for forestry cranes, agricultural loaders, and construction machinery.

＆#128273; Key Features

3000kg (3 ton) lifting capacity for heavy-duty applications
Shaft-type mount ensures secure and stable installation
360° continuous hydraulic rotation for smooth operation
Direct replacement for FINN CRA300, Baltrotors GR30, Formiko FHR3L
Optimized for forestry, agriculture, construction, and off-road use
Rugged build for extreme outdoor conditions
Factory-direct supply with competitive pricing and quality assurance

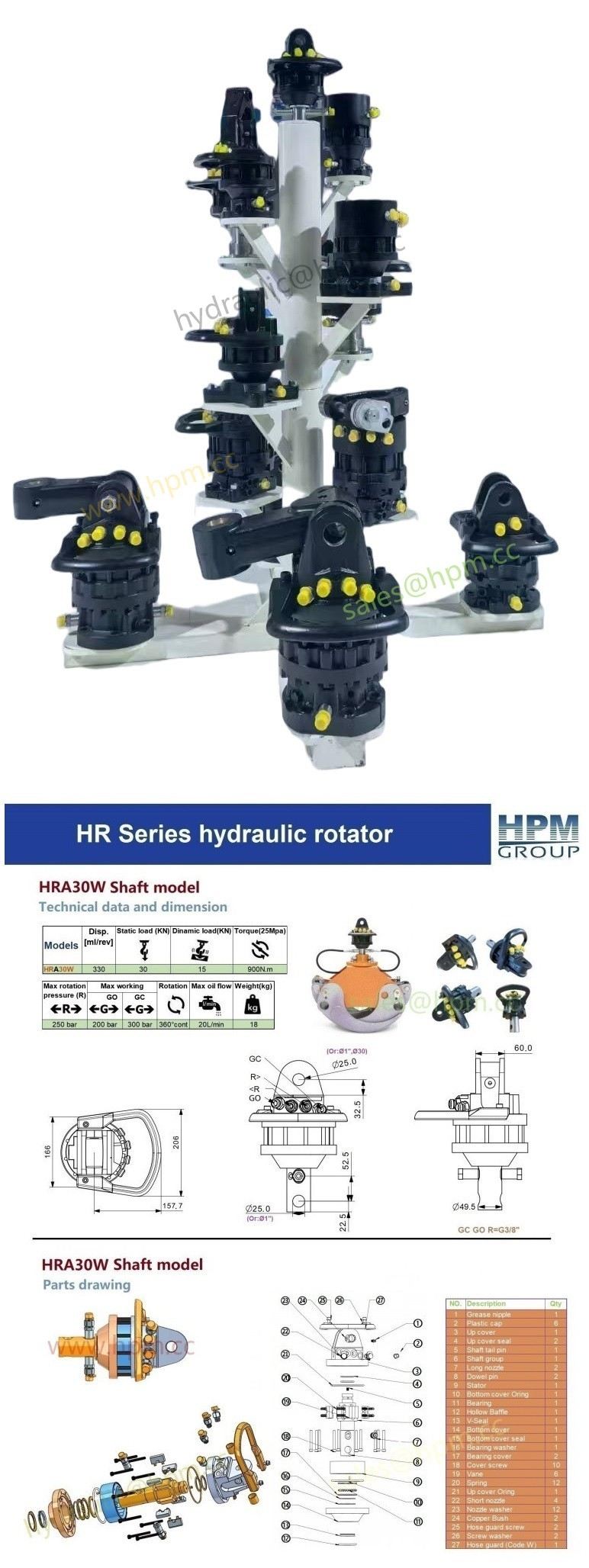

＆#128202; Technical Specifications

Model: HRA30W
Displacement: 330 ml/rev
Static Load: 30 KN
Dynamic Load: 15 KN
Torque (25Mpa): 900 N·m
Max Rotation Pressure (R): 250 bar
Max Working Pressure (GO): 200 bar
Max Working Pressure (GC): 300 bar
Rotation: 360° continuous
Max Oil Flow: 20 L/min
Weight: 18 kg

＆#127757; Ideal Applications

Forestry and logging cranes
Agricultural loaders & mini tractors
Road & construction machinery
Material & cargo handling equipment
Urban and off-road machinery

＆#10067; Frequently Asked Questions (FAQ)

Q1: What is the lifting capacity?
A1: 3000kg (3 tons), suitable for heavy-duty work.

Q2: Is it interchangeable with other brands?
A2: Yes, compatible with FINN CRA300, Baltrotors GR30, and Formiko FHR3L.

Q3: What type of mounting does it use?
A3: Shaft-type mount, secure and stable.

Q4: Can it rotate continuously?
A4: Yes, 360° continuous hydraulic rotation.

Q5: Which industries use this product?
A5: Forestry, agriculture, construction, and material handling.

Q6: What is the maximum oil flow?
A6: 20 L/min.

Q7: How much does it weigh?
A7: 18 kg, compact yet powerful.

Q8: What is the maximum working pressure?
A8: 200 bar (GO), 300 bar (GC), 250 bar rotation.

Q9: Suitable for outdoor conditions?
A9: Yes, rugged build for extreme forestry and off-road use.

Q10: Why choose this model?
A10: Cross-brand compatibility, factory-direct price, durable performance.
