Grab Rotator HRA10W | 1 Ton Shaft-Type Hydraulic Rotator | Replacement for FINN CRA100, Baltrotors GR10, Formiko FHR 1L
Product Summary
Grab Rotator HRA10W is a compact 1-ton shaft-type hydraulic rotator engineered for forestry cranes, agricultural loaders, truck-mounted cranes, and logging grapples.
It delivers smooth 360¡ã continuous hydraulic rotation, precise load control, and dependable performance in harsh outdoor conditions.
Designed as a direct, drop-in replacement for popular international models, it allows operators to upgrade or replace existing units with minimal effort, maintaining consistent handling and efficiency.
Key Features
1 ton (1000 kg) lifting capacity for light-to-medium forestry and agricultural tasks
Shaft-type connection for secure fit and straightforward installation
360¡ã continuous rotation for accurate log, crop, and bulk material positioning
Fully sealed construction for extended service life in dusty, wet, or muddy sites
Direct interchangeability with FINN CRA100, Baltrotors GR10, Formiko FHR 1L

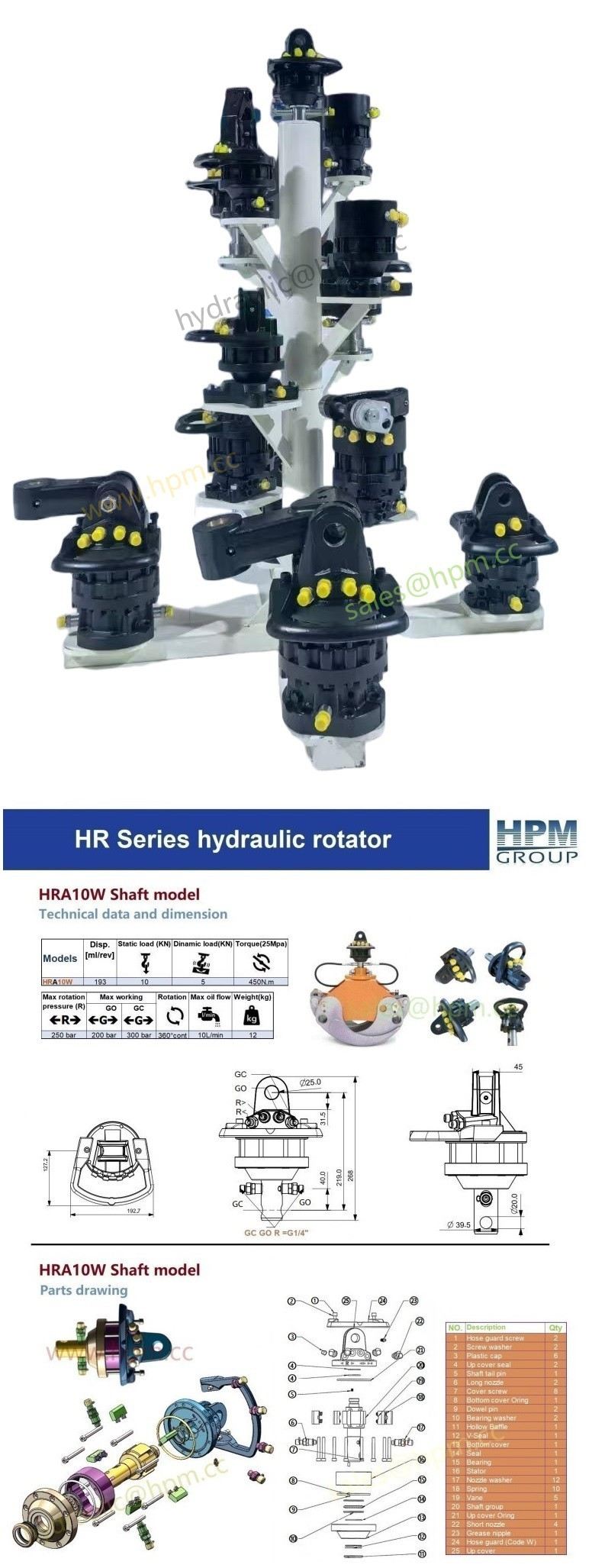

Technical Specifications
Model:HRA10W
Displacement: 193 ml/rev
Static Load: 10 kN
Dynamic Load: 5 kN
Torque (at 25 Mpa): 450 N¡¤m
Max Rotation Pressure (R): 250 bar
Max Working Pressure (GO): 200 bar
Max Working Pressure (GC): 300 bar
Rotation: 360¡ã Continuous
Max Oil Flow: 10 L/min
Weight: 12 kg
Compatibility
Interchangeable Models
FINN Rotor CRA100
Baltrotors GR10
Formiko FHR 1L
Compatible Part Numbers
FINN Rotor 70100-000
FINN Rotor CR 100-W25A20-000
Baltrotors GR10
Formiko FHR 1L
Applications
Forestry & logging grapples and small timber cranes
Agricultural loaders, farm machinery, and orchard handling
Truck-mounted and trailer cranes for rural or municipal use
All-terrain and off-road material handling equipment
Why Choose the HRA10W Grab Rotator
Choose HRA10W when you need a drop-in, globally compatible solution with low hydraulic demand and precise rotation. Its shaft-type mount simplifies installation, sealed design reduces maintenance, and the balanced torque/flow profile ensures efficient operation on compact forestry and farm machines. It¡¯s an excellent choice when replacing FINN CRA100, Baltrotors GR10, or Formiko FHR 1L without modifying your boom head or grapple interface.
FAQ ¨C Grab Rotator HRA10W
1. What is the lifting capacity?
Rated at 1 ton (1000 kg) for light-to-medium duty logging and agricultural work.
2. Is it a direct substitute for FINN CRA100?
Yes, the HRA10W installs as a drop-in replacement for FINN CRA100.
3. Can it replace Baltrotors GR10 and Formiko FHR 1L?
Yes, it is fully interchangeable with GR10 and FHR 1L.
4. What mounting style does it use?
A shaft-type connection for stable, quick installation.
5. Does it support continuous rotation?
Yes, 360¡ã continuous hydraulic rotation for smooth grapple positioning.
6. What torque does it provide?
450 N¡¤m at 25 MPa, suitable for controlled loading and unloading.
7. What are the pressure ratings?
Rotation circuit max 250 bar; Working pressure GO 200 bar / GC 300 bar.
8. What oil flow is required?
Up to 10 L/min, compatible with standard small-machine hydraulic systems.
9. How heavy is the unit?
Approx. 12 kg, compact for a 1-ton class grab rotator.
10. Where is it typically used?
Forestry/logging grapples, farm loaders, truck-mounted cranes, and off-road handling.
Conclusion
If you need a reliable, easy-to-install grab rotator that directly replaces FINN CRA100, Baltrotors GR10, or Formiko FHR 1L, the HRA10W delivers precise rotation, sealed durability, and proven compatibility for forestry, agriculture, and mobile crane applications.
