Product Overview
Grapple Rotator – 1 Ton Rigid Type is designed for light-duty lifting and precision handling. With its flat head upper connection and rigid mounting design, this model ensures a stable fit and reliable 360° hydraulic rotation. Compact yet durable, the HRFF10 is built to meet the requirements of forestry cranes, agricultural loaders, truck-mounted systems, and all-terrain equipment.
As a cost-effective yet professional solution, the HRFF10 Grapple Rotator combines ease of installation, rugged outdoor durability, and industry-standard compatibility, making it an excellent choice for small to mid-size material handling machinery.
Key Features
1-ton lifting capacity – designed for small and medium-duty equipment
Flat head upper connection – rigid mount for stable integration
Rigid connection hydraulic design – ensures secure handling without play
360° continuous rotation – smooth and reliable grapple operation
Industry compatibility – interchangeable with standard rigid connection models
Durable construction – built for outdoor, off-road, and industrial applications

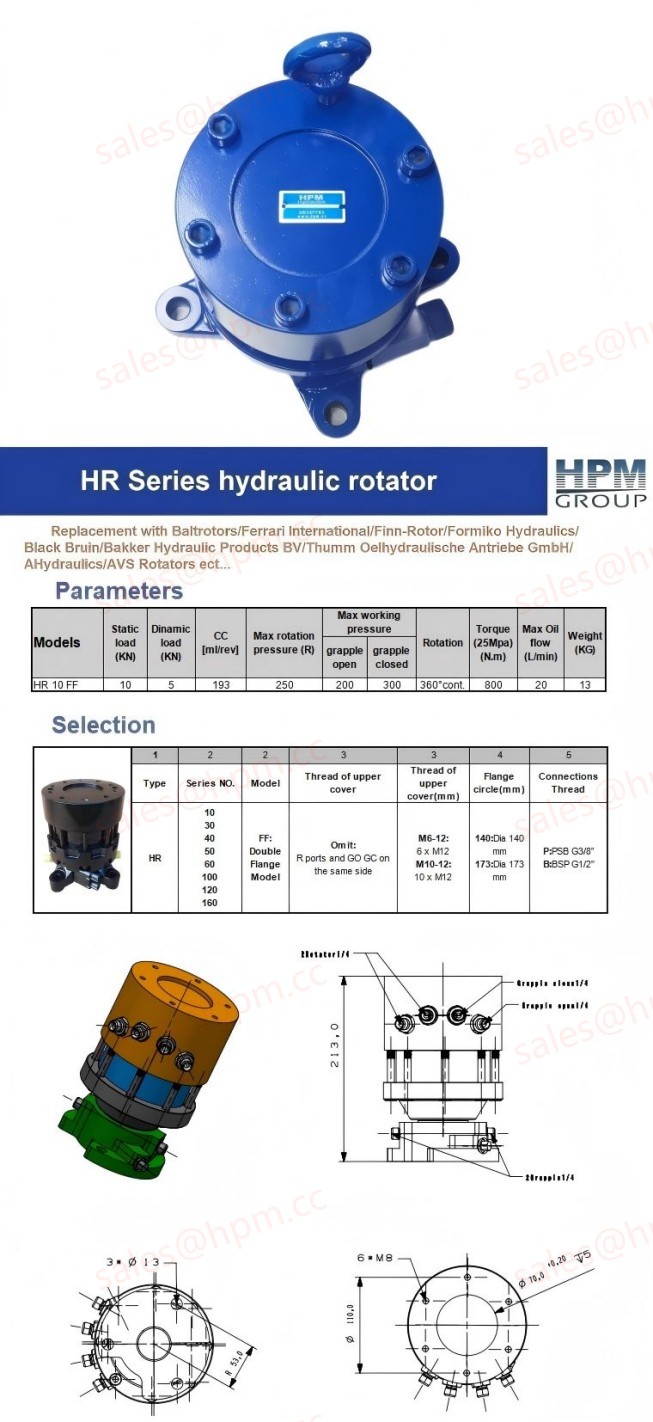

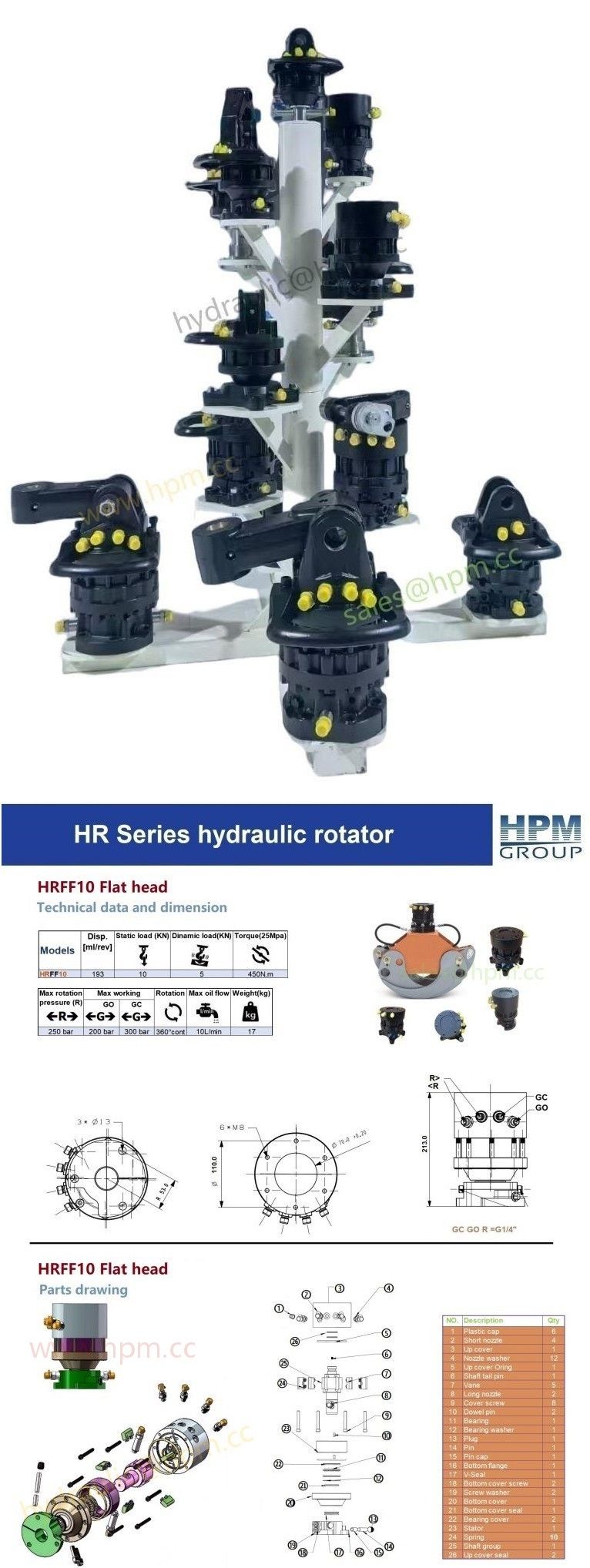

Technical Specifications
Model: HRFF10
Displacement: 193 ml/rev
Static Load: 10 kN
Dynamic Load: 5 kN
Torque (at 25 Mpa): 450 N·m
Max Rotation Pressure (R): 250 bar
Max Working Pressure (GO): 200 bar
Max Working Pressure (GC): 300 bar
Rotation: 360° Continuous
Max Oil Flow: 10 L/min
Weight: 17 kg
Compatibility
The HRFF10 Grapple Rotator is fully compatible with industry-standard 1-ton rigid connection hydraulic rotators, allowing operators to use it as a direct replacement or upgrade option across forestry, agricultural, and light construction machinery.
Applications
The HRFF10 Grapple Rotator is ideally suited for:
Forestry cranes – small log handling and loading
Agricultural loaders – farm and field material lifting
All-terrain handling equipment – off-road and multipurpose carriers
Cargo and transport vehicles – truck-mounted hydraulic systems
Trailer-mounted cranes – light lifting and rotation applications
FAQ – Grapple Rotator HRFF10
1. What is the lifting capacity of the HRFF10?
The HRFF10 supports up to 1 ton (1000 kg), making it suitable for light-duty operations.
2. What type of mounting does this rotator use?
It features a flat head rigid connection, ensuring a stable and secure fit.
3. Does the HRFF10 provide continuous rotation?
Yes, it allows for 360° continuous hydraulic rotation.
4. Is it interchangeable with other brands?
Yes, the HRFF10 is designed to be compatible with industry-standard 1-ton rigid rotators.
5. Can it be used in forestry applications?
Absolutely. It is widely used in forestry cranes and small log loaders.
6. Is the HRFF10 suitable for agricultural machinery?
Yes, it can be mounted on agricultural loaders and farm handling equipment.
7. Can it be installed on truck-mounted or trailer-mounted cranes?
Yes, it is commonly used in mobile hydraulic lifting systems.
8. How durable is the HRFF10 in outdoor conditions?
It is designed with rugged construction, making it reliable for off-road and outdoor use.
9. What industries typically use this rotator?
Forestry, agriculture, construction, cargo transport, and waste handling industries.
10. Why choose the HRFF10 Grapple Rotator?
Because it offers a compact, durable, and cost-effective solution for small-scale material handling with OEM-level reliability.
Conclusion
The HRFF10 Grapple Rotator is a 1-ton flat head rigid hydraulic rotator engineered for forestry, agriculture, cargo handling, and light construction use. With its rigid mounting system, 360° rotation, and reliable lifting capacity, it serves as a durable and compatible replacement for industry-standard models. For operators seeking a cost-effective and compact option, the HRFF10 Grapple Rotator provides dependable performance in demanding environments.
