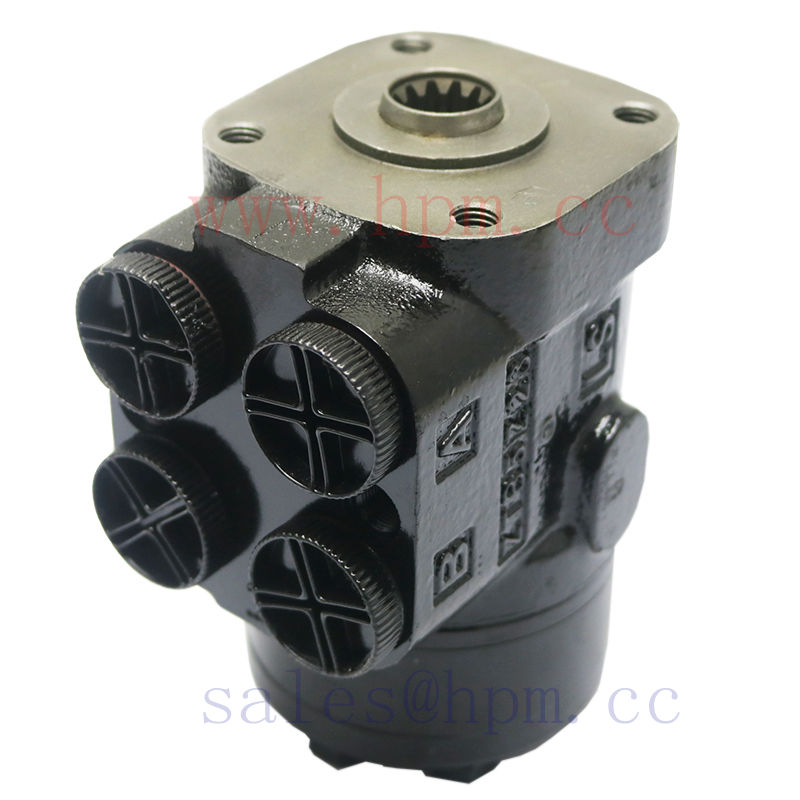

¡ö CHARACTERISTICS
(open center reaction Without built-in valves)
The 102-2 series not have built-in valve functions . Where valve functions are required with the 102-2, an valve block is available for flange mounting on the steering unit.
Comparison :
102-2-50 HKU50/3 102-2-80 HKU80/3 102-2-100 HKU100/3 102-2-125 HKU125/3 102-2-160 HKU160/3 102-2-200 HKU200/3 102-2-250 HKU250/3 102-2-315 HKU315/3 102-2-400 HKU400/3
¡ö TECHNICAL DATA
|
TYPE
|
Displacement
|
Rated Flow
|
Max.input
|
Max.Cont.Back
|
Normal Input
|
Length
|
Weight
|
|
Pressure
|
Pressure
|
Torque
|
|
102-2-50
|
50
|
5
|
17.5
|
2.5
|
<2.5
|
131
|
5.4
|
|
102-2-63
|
63
|
6
|
17.5
|
2.5
|
<2.5
|
133
|
5.5
|
|
102-2-80
|
80
|
8
|
17.5
|
2.5
|
<2.5
|
135
|
5.6
|
|
102-2-100
|
100
|
10
|
17.5
|
2.5
|
<2.5
|
138
|
5.7
|
|
102-2-125
|
125
|
13
|
17.5
|
2.5
|
<2.5
|
141
|
5.9
|
|
102-2-160
|
160
|
16
|
17.5
|
2.5
|
<2.5
|
146
|
6
|
|
102-2-200
|
200
|
20
|
17.5
|
2.5
|
<3
|
151
|
6.2
|
|
102-2-250
|
250
|
25
|
17.5
|
2.5
|
<3
|
157
|
6.5
|
|
102-2-280
|
280
|
28
|
17.5
|
2.5
|
<3
|
162
|
6.6
|
|
102-2-315
|
315
|
32
|
17.5
|
2.5
|
<3
|
167
|
6.9
|
|
102-2-400
|
400
|
40
|
17.5
|
2.5
|
<3
|
177
|
7.2
|
|
102-2-500
|
500
|
50
|
17.5
|
2.5
|
<5
|
197
|
8
|
|
